SLIDING WINDOW/DOOR SOLUTIONS
1

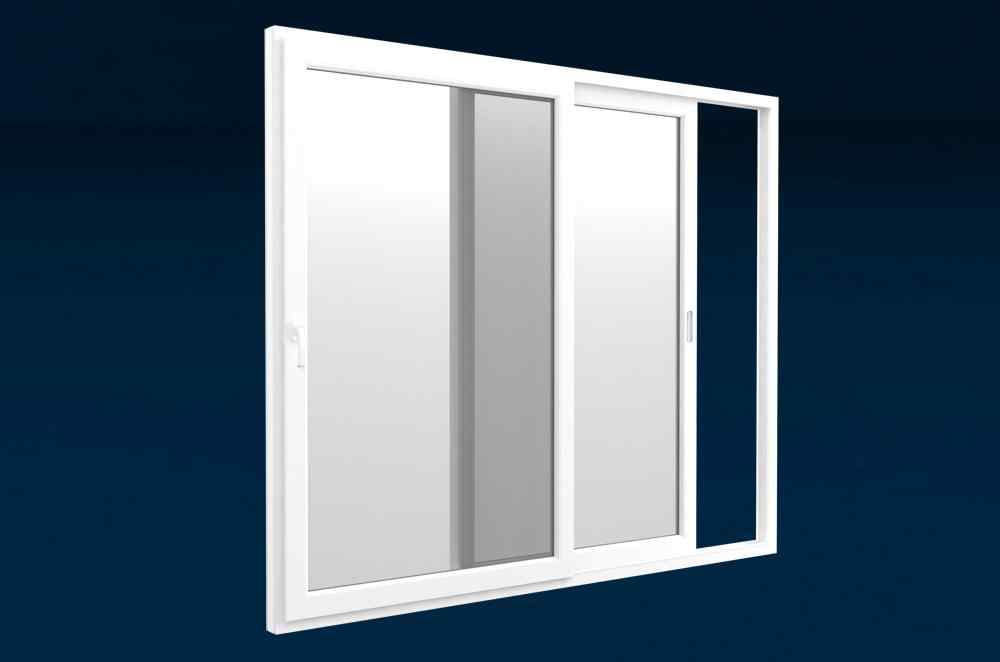

Sliding System
How to Open the Casement
- For the 4 chamber sliding application, the casement is opened by moving the handle on the casement A from the position no. 1 to the position no. 2. The casements are driven to the right and to the left.
- In case of a locked latch, first unlock it with a wrench.
How to Close the Casement
- Two casements opening to the left and the right are joined on the middle for the 4 chamber sliding applications. The handle is locked by moving it from the position no 2 to the position no. 1. In case of a latch, it is locked by means of a key.
2
Hs76 Sliding
How to Open the Casement
- Move the HS door handle on the wing from the position no. 1 to the position no. 2.
- Open by sliding the casement on the rail after moving the handle to the position no. 2.
-
How to Close the Casement
- Lean the casement in the reverse direction completely onto the frame.
- Lock it by moving the handle from the position no. 1 to the position no. 2.
